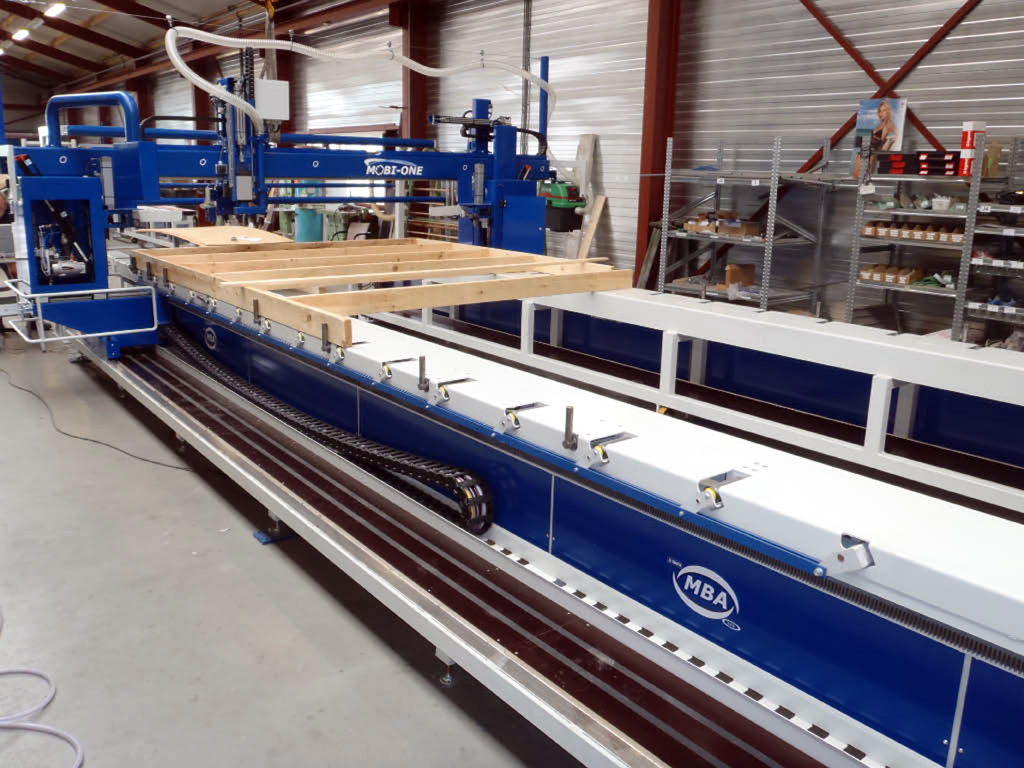

MBA - Mobi One Machine d'Ossature Bois Indusrielle tout-en-un

orCall +44 (0)151 548 9000
Description
Machine complète de montage d’ossatures bois capable d’effectuer les opérations suivantes :
- Téléchargement des plans de murs à partir du logiciel de DAO.
- Positionnement précis, automatique, des montants et composants d’ossature.
- Clouage du cadre jusqu’à 300 mm pour les murs épais.
- Clouage ou agrafage du contreventement.
- Défonçage automatique des ouvertures et calibrage extérieur des 4 côtés.
- Déroulage assisté du pare-pluie. - Positionnement et clouage automatique des tasseaux
Tout le travail se fait sur la station sans déplacer le panneau, ce qui permet un encombement réduit de 15m pour un panneau de 12m fini.
Full PC control with 2 off 17” touch screens
Interactive display of framing for panel assembly
Automatic download from drawing software
Heavy duty tables with one fixed side and one moving side
90 degree squaring corner blocks with pneumatic retraction to enable
panel to move to next position when finished
1500mm minimum panel height
Maximum panel height 5m
Maximum panel length 6m – optionally up to 13m
400mm wide heavy duty work tables
825mm working height
300mm maximum panel thickness
Motorised table opening with automatic brake locking
Independent pneumatic retractable clamping system, for the
complete access of nail guns along top and bottom rails,
to enable square and accurate clamping of the panel
Framing tools driven to the required position via a servo drive motor, with heights controlled by software
Bridge mounted with one nailing / stapling tool as standard. Options for 2 or 3 nailing tools to be mounted
Full integration with major software packages including Sema, Dietrich;s, HsbSoft, CADWORKS, Gang Nail & Mitek.
Batten application system with guide to ensure they battens are
kept straight before nailing including batten storage area
Selection of 1,2 or 3 nail positions in both automatic and manual modes
Pneumatic lifting rollers to assist the manually transporting of the finished panel to next position.
2nd Fixed Carriage for nailing top
Additional tool mount and controls on bridge - per tool (2 or 3 in total)
Additional meter capacity (price per meter) - max 13m
Servo controlled router, with mobile dust collector
Option price for baton guide on linked nailing bridge
Paper roll clamp on bridge (including roll holder
Laser for aligning studs
Specifications
Manufacturer | Modular Building Automation ( MBA ) |
