About this Product

  • Full PC control with two 19” touch screens
  • Interactive display of framing for panel assembly
  • Automatic download from drawing software
  • Heavy duty tables with one fixed side and one moving side
  • 90-degree squaring corner blocks with pneumatic retraction to enable the panel to move to the next position when finished
  • Motorised table opening with automatic brake locking
  • Independent retractable clamping system, for the complete access of nail guns along the top and bottom rails, to enable square and accurate clamping of the panel

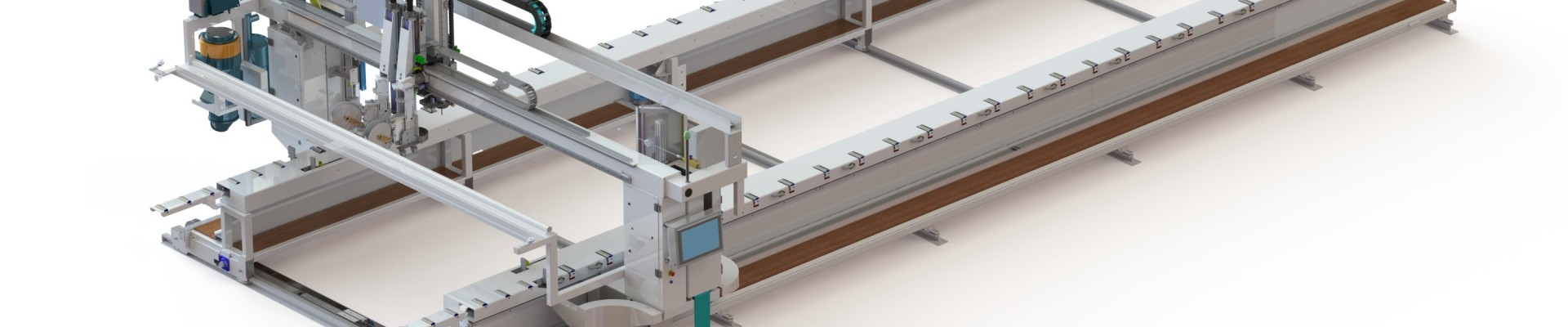

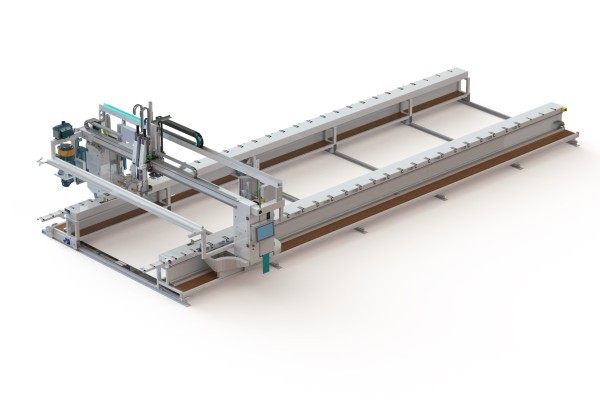

X Combi 2023 JPEG2

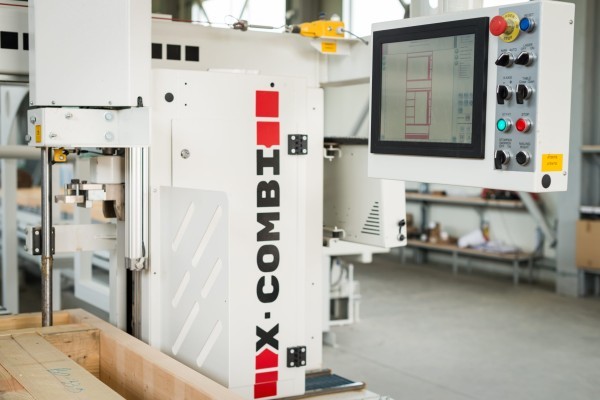

Photo 10 10 2020 21 50 05
Photo 10 10 2020 21 50 05

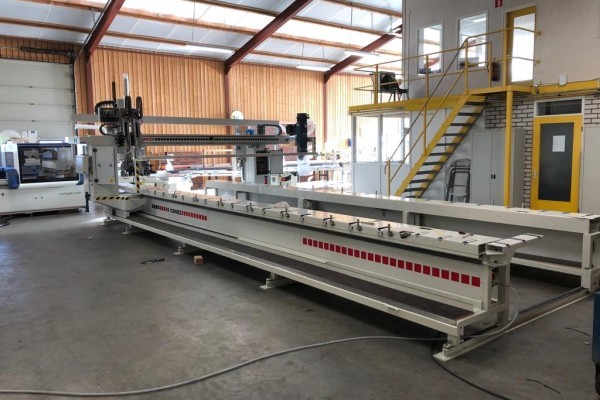

X Combi1

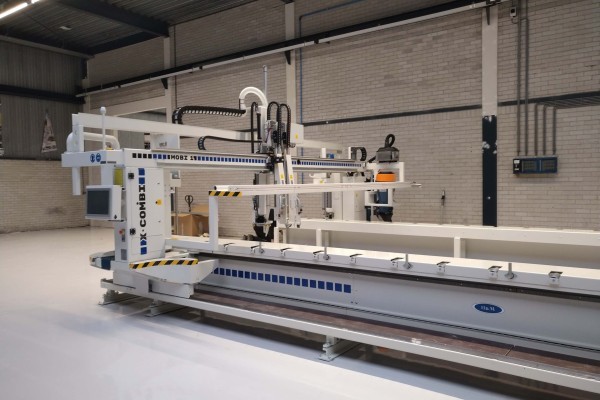

X Combi2

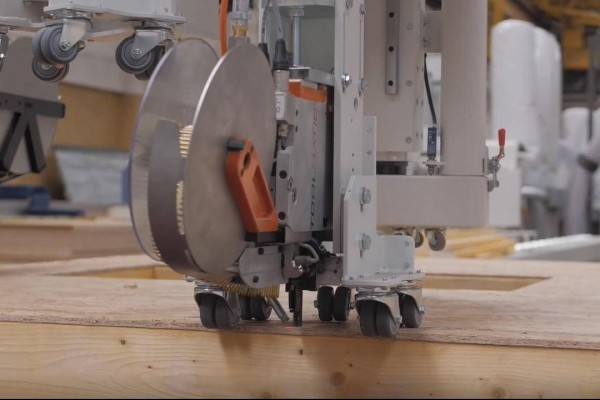

Sfhuru
Ergio 1349

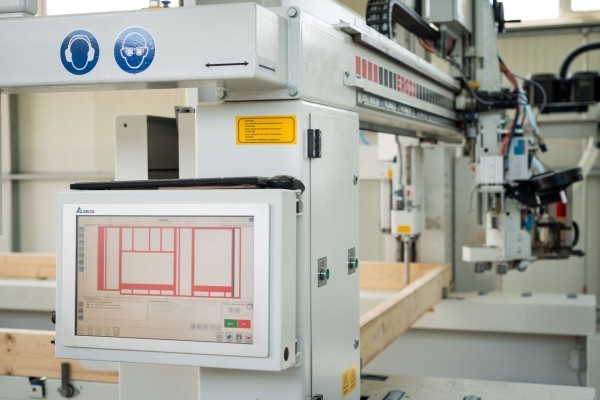

Ergio 1353

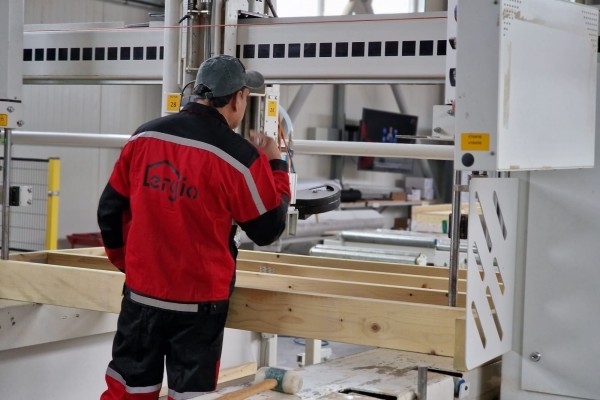

Whatsapp Image 2023 03 09 At 102601
Whatsapp Image 2023 03 09 At 102600

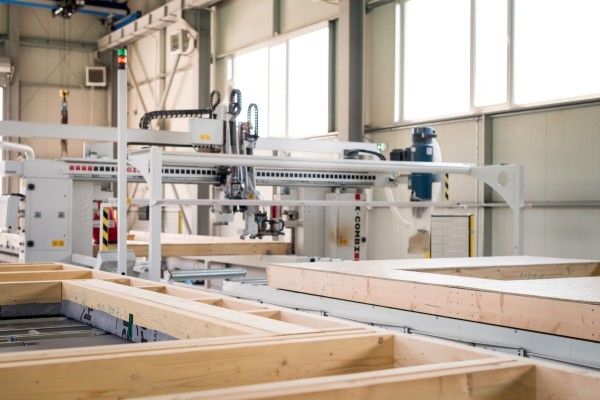

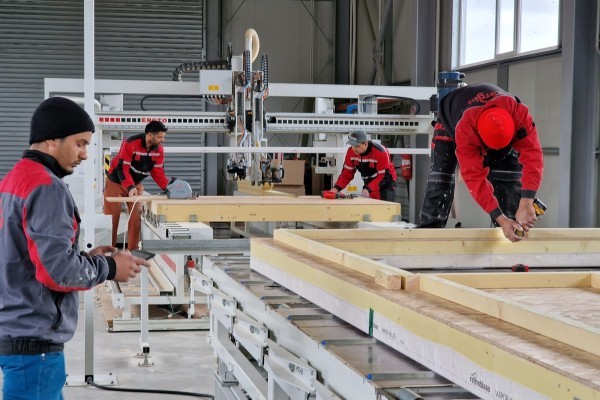

A complete working station for the production of timber frame construction walls including the following functions:

  • Framing of the wall
  • Application of cladding
  • Nailing or stapling of cladding
  • Drilling & Routing of openings and overhangs
  • Application of breather paper
  • Nailing of battens
  • Glueing of sheeting material to frames
Contact A Specialist
Ergio 1349
Contact A Specialist
phone icon +44 (0)151 548 9000 email icon info@modularbuildingautomation.eu
Specification
  • Full PC control with 2 off 19” touch screens Interactive display of framing for panel assembly Automatic download from drawing software
  • Heavy duty tables with one fixed side and one moving side
  • 90 degree squaring corner blocks with pneumatic retraction to enable panel to move to next position when finished
  • 1500mm minimum panel height Maximum panel height 6m
  • Maximum panel length 20m
  • 825mm working height 500mm maximum frame height
  • Motorised table opening with automatic brake locking
  • Independent retractable clamping system, for the complete access of nail guns along top and bottom rails, to enable square and accurate clamping of the panel
  • Framing tools driven to the required position via a servo drive motor, with heights controlled by software
  • Bridge mounted with nailing / stapling tool as standard. Options for other tools to be mounted
  • Full integration with major software packages including Sema, Dietrich;s, HsbSoft, CADWORKS, Gang Nail, DDS, Mitek.& Inventor
  • Batten application system with guide to ensure they battens are kept straight before nailing including batten storage area
  • Selection of multiple nail positions in both automatic and manual modes
  • Pneumatic lifting rollers to assist the manually transporting of the finished panel to next position.
  • Optional stud/sheeting carriage enabling studs to remain adjacent to the operator whilst assembling the frame.
