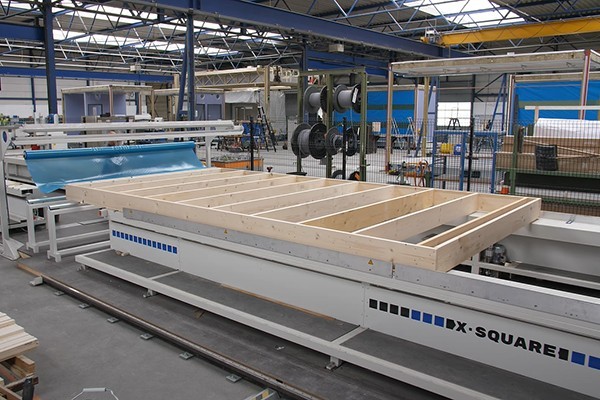

X-Square Timber Frame Squaring Station

Heavy Duty tables with one fixed and one moveable side for the squaring of a pre-manufactured panel for the application of OSB board or Plywood.
The range of opening is configured when installed with a 1500m movement
Minimum opening 1500mm
Maximum opening 3000mm (optionally 3500mm)
Working height 825mm
Width adjustment motorised with locking system.
85mm high bar for panel clamping along the full length of the station.
Automatic panel squaring and clamping including 3-way clamping
Swing gates for easy access through the line.
6m capacity table.

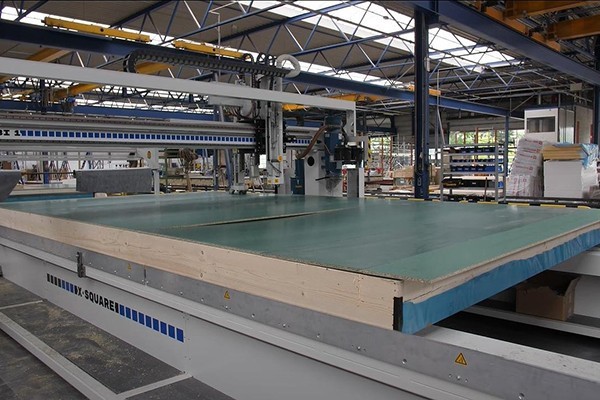

A squaring station for the application of cladding material to a pre-assembled frame.

Heavy Duty tables with one fixed and one moveable side for the squaring of a pre-manufactured panel for the application of OSB board or Plywood.
The range of opening is configured when installed with a 1500m movement
Minimum opening 1500mm
Maximum opening 3000mm (optionally 3500mm)
Working height 825mm
Width adjustment motorised with locking system.
85mm high bar for panel clamping along the full length of the station.
Automatic panel squaring and clamping including 3-way clamping
Swing gates for easy access through the line.
6m capacity table.
