X-Tilt Steel Frame

Quick and Safe Flipping of Steel Frame Panels

Contact a specialist

By providing your details you are giving consent for us to contact you to discuss related products and services that may be of interest to you.

About this Product

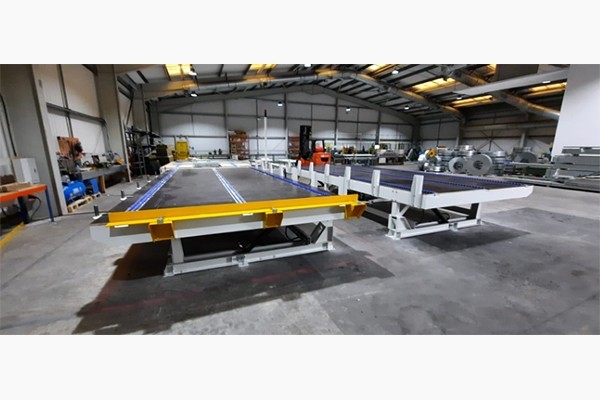

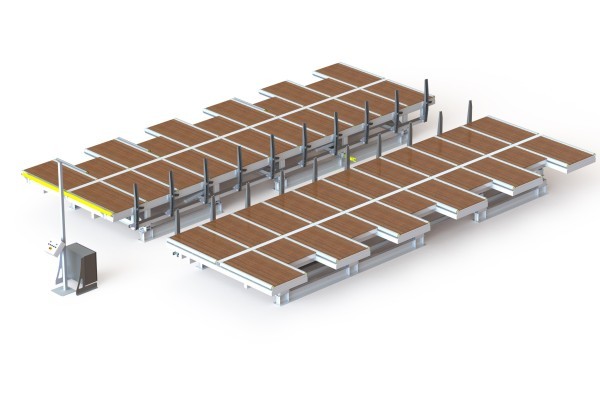

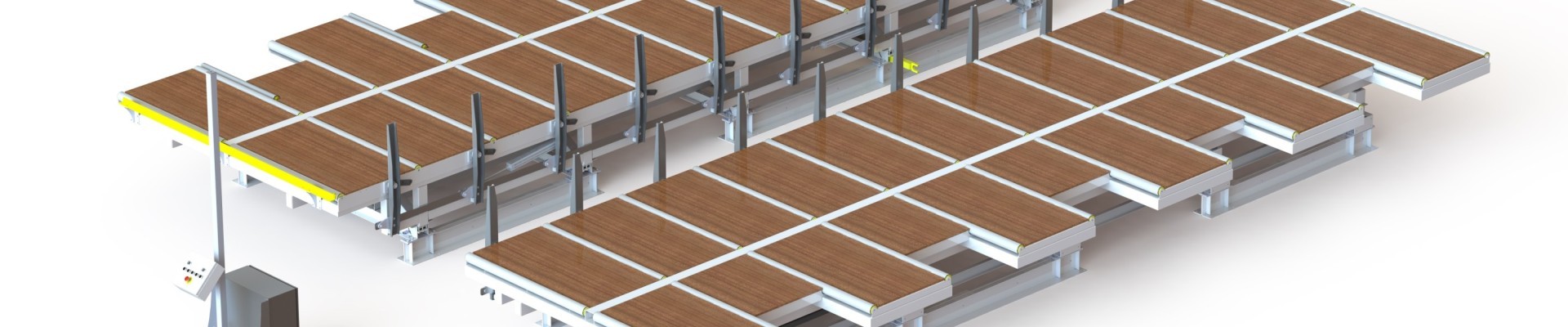

A pair of hydraulically operated tables (also known as a butterfly table) that enable the panels to be brought to the vertical position, passed to the 2nd table, and safely lowered back down on the opposite side for screwing the underside of the frame, fitting of insulation and closing of the panel.

There is an option to have pneumatically operated pop-up idle roller tracks fitted in the table, for easy loading and unloading of the panels. The hydraulic lifting of the tables is controlled by push button operation, with fail-safe locking cylinders 3,5kw motor. 6m standard length (optionally, 9m or 12m) Standard 2.7m table width.

Simple turnover device for steel frame panels to enable the screwing of the underside during steel frame assembly, or for the turning of elements once boarded on one side.

  • Both Tables - up to 6m (1.0m tonne capacity)
  • Both Tables - up to 9m (2.0m tonne capacity)
  • Both Tables - up to 12m panel length (3.0m tonne capacity)
Optional Equipment


  • Rollers for rolling elements in and out of the tables
  • End and side reference stops
