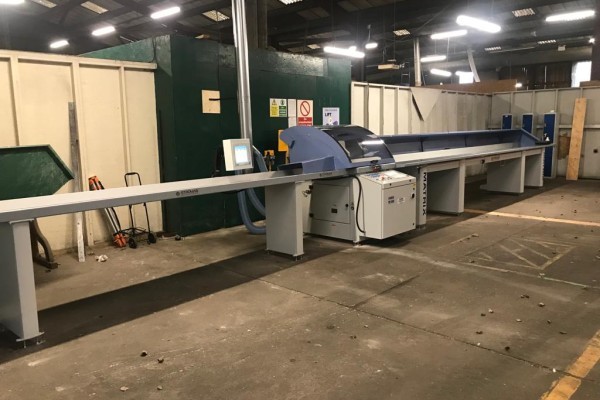

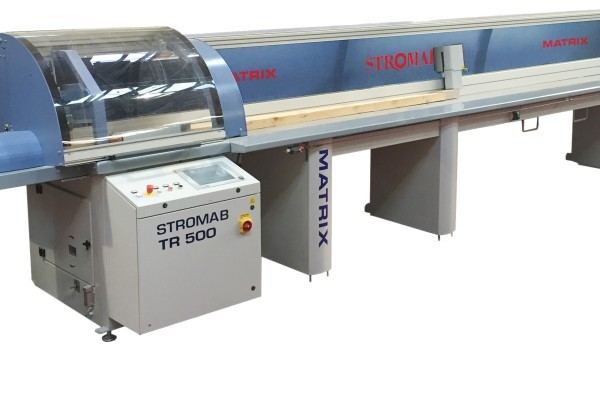

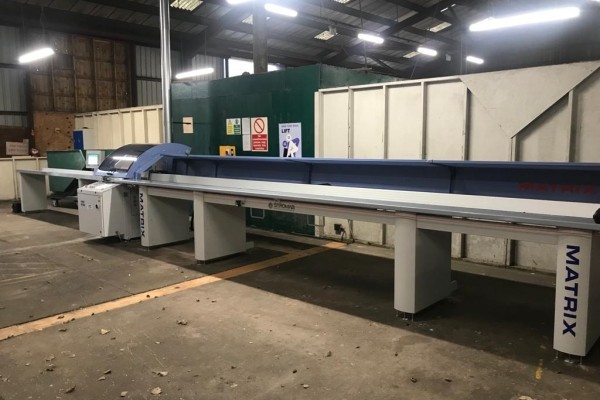

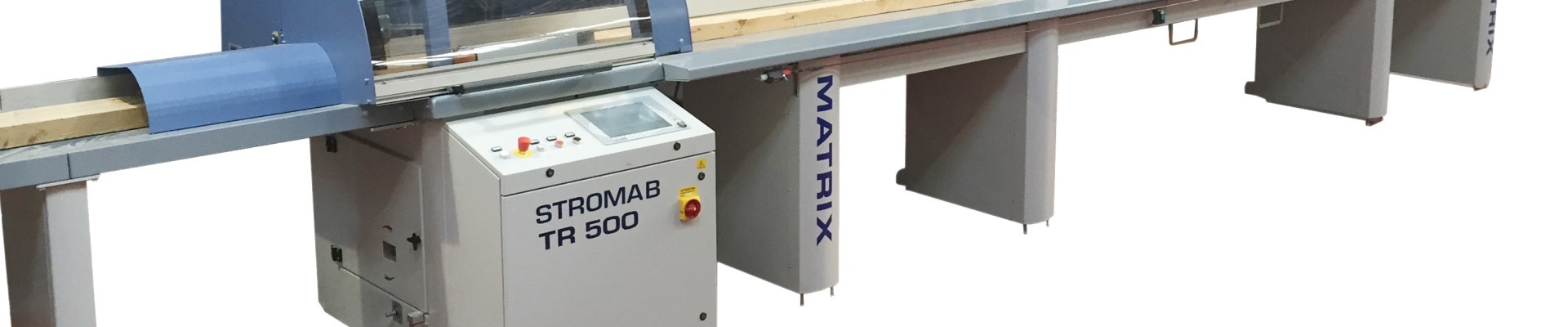

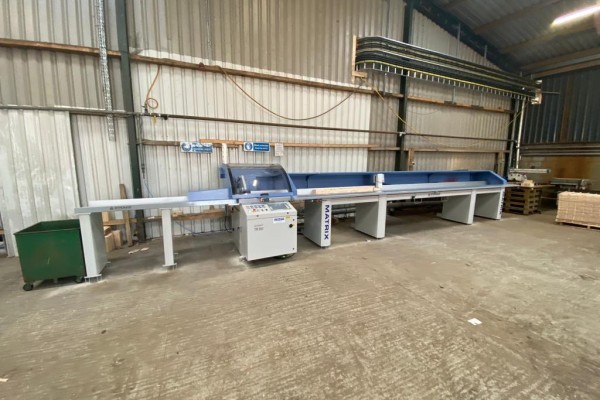

Stromab Matrix

Automatic Programmable Push Fed Crosscutting Saw

Contact a specialist

By providing your details you are giving consent for us to contact you to discuss related products and services that may be of interest to you.

About this Product

A heavy duty range of upstroke crosscutting saws, designed for programmable and repetitive cutting from standard and / or random lengths of timber. The saw unit has a pneumatic upstroke action with variable speed control, while the pusher / feed is fitted with a heavy duty rack and pinion drive feeding system for fast positioning giving a high level of repeat cutting accuracy. The saw unit and clamping area is totally enclosed by a clear hinged electrically interlocked hood that while giving the operator a clear view of the cutting area still gives complete protection. The infeed and outfeed tables are of all steel construction meaning even heavy sections or packs of timber can be processed. For additional operator safety the rear of the pusher system is guarded, while there is a full length safety pull cord on the front infeed table. The Elco TOP 12 industrial control unit, specifically designed and built for industrial automation, with simple programming and operator interface. The clear 12" touchscreen display allows storing and running cutting lists at a push of a button. As standard the machine now offers USB, ethernet and 3 levels of optimisation including "board sequence" ideal for repetitive cutting. The Matrix OPTI version offers an additional 3 optimisation criteria including "minimum waste" and automatic board length measuring suitable for random length boards. The Matrix DEFECT version offers all optimisation criteria, length measuring, a defect removal camera and timber grading. Options for all models include pneumatic side pressure, extended outfeed table and inkjet printing.

A high speed, fully programmable push fed cross cut saw for the cutting of timber frame components

Straight Cutting Saw

135mm Cutting Height

+/- 0.2mm accuracy

Specification

Self braking motor 10hp
Saw blade diameter 500mm
Max cutting width (refer to chart) 360mm
Max cutting height (refer to chart) 135mm
Specification Pusher Unit Capacity 3000mm to 15000mm
Programmable cutting cycles 1000 programmable sizes per cutting list
Push system - Rack and pinion with brushless motor
Positioning speed 100m/min
Positioning accuracy 0.4mm
Pneumatic rising of the pusher at the end on the cutting and overhead return
1m outfeed table
Dust extraction connections 3 off dia 100mm
Air consumption per cycle 8 nl
Nett weight 400kg

Options
