Description

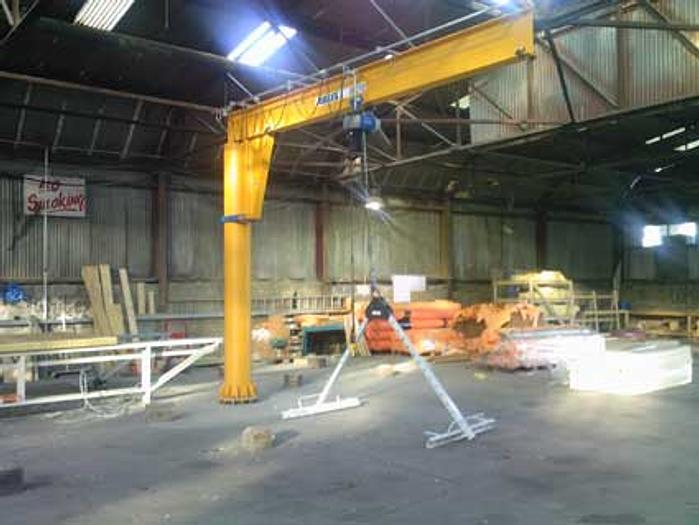

A freestanding pillar jib crane suitable for the lifting off of completed panels to the side or the end of a line.  Suitable for the support of a panel lift.

Specification:

- Jib type: VS with chain hoist.
- Safe working load 800 kg.
- Working radius 6,000 mm.
- Height to underside of arm 4,824 mm.
- Height of lift from FFL 4,302 mm.
- Hoist type GM 4 800.5-2.
- Hoist speeds 5 m/min / 1.3 m/min.
- Hoist duty-rating [FEM 3m] M6.
- Trolley travel speeds Push/Pull.
- Slewing speeds Push/Pull.
- Slewing range 360º.
- Operating voltage 400 V / 3ph / 50Hz.
- Control voltage 48 V.
- Control Pendant from hoist.
- Final paint RAL 1007 yellow.
- Client responsible for concrete foundation and fitting of anchor bolts ( supplied ).

Optional Equipment:

- Panel lift one tonne.

Specifications

ConditionNew
