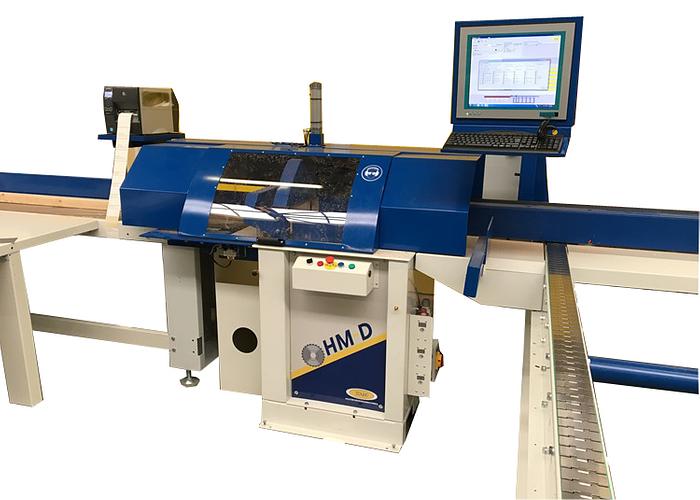

HM-D Automatic Push Fed Crosscut Saw For Straight Cutting


Contact us for price

orCall +44 (0)151 548 9000


A completely automatic upstroke saw suitable for cutting single and packs of timber.  The machine is equipped with a rack and pinion positioning system to ensure accurate positioning for both long and short lengths.  The machine is of heavy duty construction and is suitable for heavy or variable weights of timber.  The sawblade action is in a quarter circle enabling wide sections of timber to be crosscut.  The machine can be manufactured to work either left to right or vice versa. ​Specification 6m infeed capacity roller table equipped with: - 50mm diameter rollers 500mm wide to 200mm centres - Rack and pinion drive system - 2 off 100mm dust extraction outlets - AC drive with heavy duty gear box - Infeed table inclinded 10° to keep boards against the fence - 100kg load bearing capacity per roller - 60m/min maximum feed speed - Lifting pusher on return stroke Upstroke crosscut saw - 7.5hp braked motor - Pneumatic saw movement - 550mm blade - Fully guarded and interlocked Outfeed Table Optional Computer control - Industrial PC running Windows XP - LCD screen - English software - Touch Screen operation - Network card, with appropriate connections to connect to an ethernet - Office software for remote input of cutting list data - Cutting patterns in sequence mode Optional Equipment - Side pressure - Liftable pusher on return stroke - Optimaster Software for importing and optimising from external software (e.g. Consultec, HSB, Wolf, Excel etc) - Outfeed monitor - Defecting camera and associated software (including in line optimisation) - In line ink jet printing - Extra meter infeed / outfeed (over standard lengths) - Drilling head (Vertical) up to 10mm hole diameter (Manual X & Y adjustments - CNC Z axis) - Drilling head (Vertical) up to 60mm hole diameter (Manual X & Y adjustments - CNC Z axis) - Vertical notching head 5.5kw motor z axis by hand - Notching head (Horizontal) - Import and optimisation of cutting lists direct to the saw programme - Label printer and software - Speed package including:side pressures both side of the saw, servo driven pusher for faster movement, variable saw stroke for faster cutting cycle - 4m driven outfeed belt with two kickers - Design2Wood software to import from external design software (see software price list) - HD option with 10hp motor, 650mm diameter sawblade to give 200mm cutting height capacity. (includes iifting pusher and waste trap) - HD option with 700mm diameter sawblade
