HM-Z3 Automatic Push Fed Crosscut Saw

3 Axis Saw for Trusses

Contact a specialist

By providing your details you are giving consent for us to contact you to discuss related products and services that may be of interest to you.

About this Product

The crosscutting saw consists of:

  • Sawing machine with 270° rotation
  • 6000 mm capacity infeed (overall length 8000mm)
  • 4000 mm outfeed table

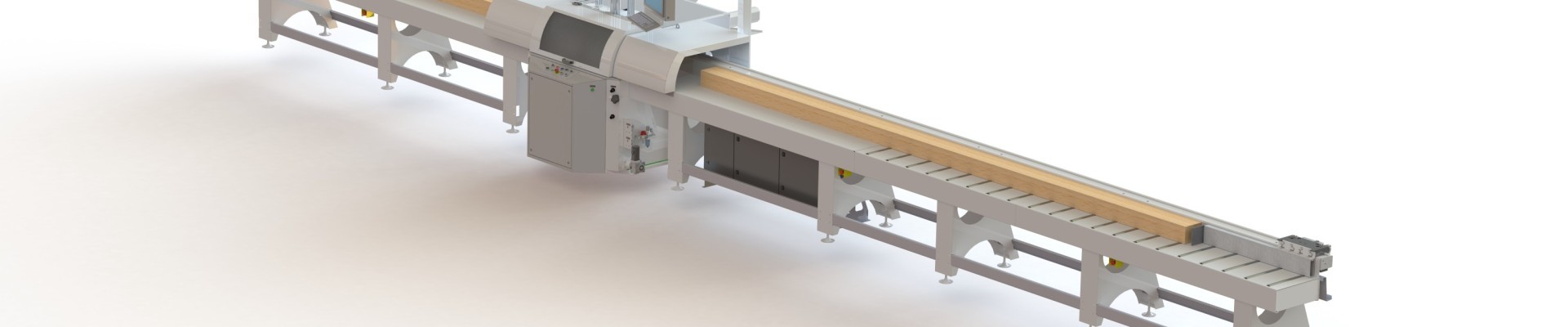

HMZ Render 09 02 2022

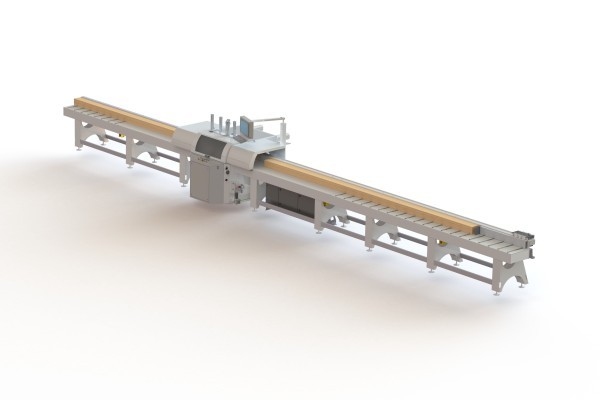

HMZ Render 09 02 2022

A completely automatic 3 axis saw specifically designed for the accurate cutting of trusses / I joists / LVL / CLT and other components. All movements are NC controlled and operate very quickly and accurately. As stardard the machine has CNC controlled cutting height.

Contact A Specialist

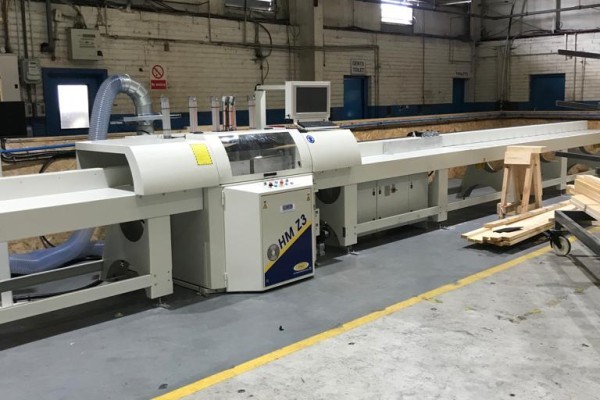

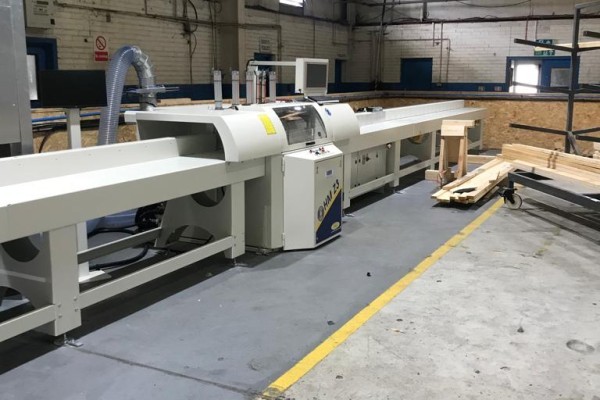

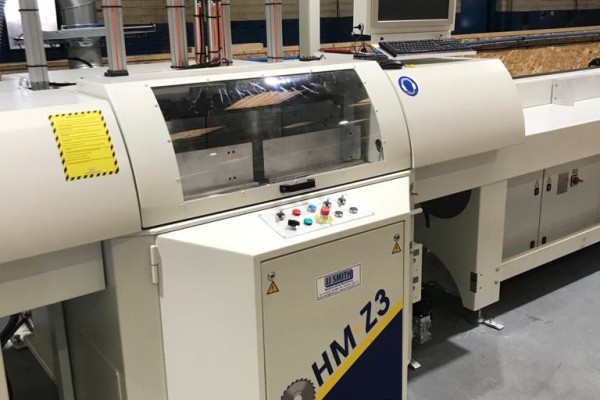

Whatsapp Image 2022 06 01 At 120924 Pm
Contact A Specialist
phone icon +44 (0)151 548 9000 email icon info@modularbuildingautomation.eu
Specification

Sawing machine

  • 7.5 hp motor
  • 700mm blade
  • 250mm maximum sawing height
  • Maximum noise level 81 dB

Pusher

  • Positioning accuracy 0.1 mm
  • 65 m/min maximum speed
  • AC motor with toothed rack, controlled by a frequency regulator steel guide with adjustable linear bearings

Computer

  • Industrial computer with colour monitor 1.2 Gb hard disk and USB & ethernet connections
  • H&M developed software using Windows
  • Touch Screen operation
  • Outfeed monitor to display cut sizes and references

General

  • The software allows for on site creation and storage of sawing lists. Sawing lists may also be created during work preparation. They can then be loaded into the machine’s computer from USB key or via ethernet connection. Creating sawing lists is very simple. The software’s graphic interface allows the selection of a specific beam model, upon which the relevant measurements are keyed in. The measurements may be entered in various ways, depending on which system is used during work preparation. The 1.2 Gb hard disk used allows for permanent storage of hundreds of sawing lists.
  • An onboard optimisation package is included which allows cutting lists entered or imported to be test optimised against timber lengths to generate an pre-optimised cutting list. This includes one import routine from external design package. An optional external software package, Optimaster is also available, for importing of cutting lists from multiple software packages, such as Excel, BTL DDS, Consultec, HSB, Sema, Vertex, Cadworks & Dietrichs. This package includes stock control, full optimisation and automatic download to any number of saws. Further information on this package is available.

The installation includes on-site instructions.

Connection points to be provided by the client

  • 1 x 220 volts mains socket on an unused, 16 Amp fused group
  • 1 x 400 volts, 32 Amp fused connection point, 3 phase + 0
  • 1 x compressed air connection, minimum 6 Bar
  • 1 x 180mm and 1 x 150m diameter extraction outlets
Options
