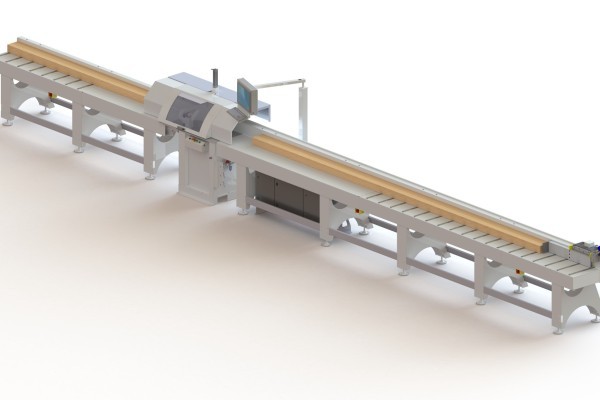

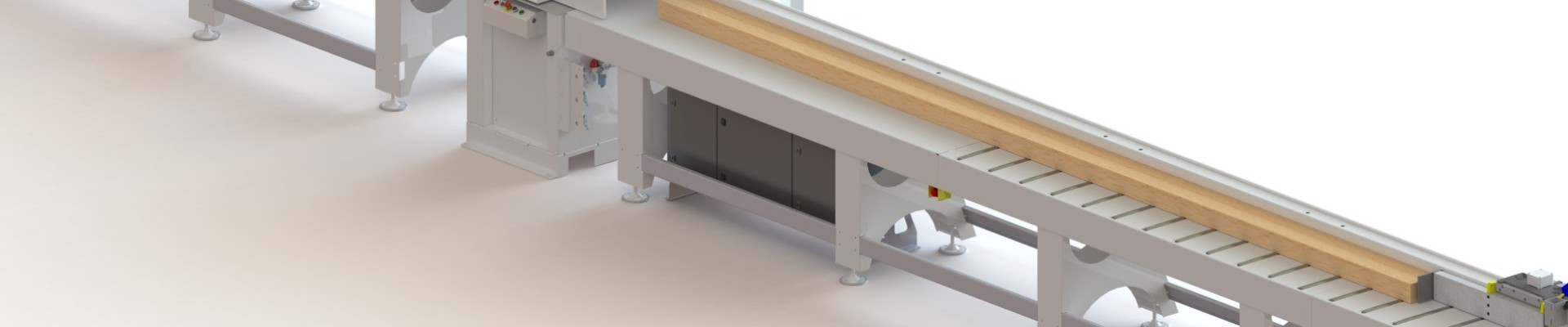

HMD Render 09 02 2022

HM-D Crosscut Saw

Heavy Duty Automatic Saw for Straight Cutting

Contact a specialist

By providing your details you are giving consent for us to contact you to discuss related products and services that may be of interest to you.

About this Product

Computer control

  • Industrial PC running Windows XP
  • LCD screen
  • English software
  • Touch Screen operation
  • Network card, with appropriate connections to connect to an ethernet
  • Office software for remote input of cutting list data
  • Cutting patterns in sequence mode

A completely automatic upstroke saw suitable for cutting single and packs of timber.

The machine is equipped with a rack and pinion positioning system to ensure accurate positioning for both long and short lengths. The machine is of heavy-duty construction and is suitable for heavy or variable weights of timber.

The sawblade action is in a quarter circle enabling wide sections of timber to be crosscut. The machine can be manufactured to work either left to right or vice versa.

Logo MBA 02
Specification

6m infeed capacity roller table equipped with:

  • 50mm diameter rollers 500mm wide to 200mm centres
  • Rack and pinion drive system
  • 2 off 100mm dust extraction outlets
  • AC drive with heavy duty gear box
  • Infeed table inclinded 10° to keep boards against the fence
  • 100kg load bearing capacity per roller
  • 60m/min maximum feed speed
  • Lifting pusher on return stroke

Upstroke crosscut saw

  • 6m infeed capacity roller table equipped with:
  • 7.5hp braked motor
  • Pneumatic saw movement
  • 550mm blade
  • Fully guarded and interlocked

Outfeed Table Optional

Options
